Product Keystone Retaining Wall System

Keystone Country Manor

Retaining Excellence™

Keystone Country Manor® offers the appearance and craftsmanship of rustic hand laid stone with the advantages of modern dry-stacked segmental wall construction and design, with easy installation of thepinned-connection and modular interlocking units.

The unique product features of Keystone Country Manor® allows for use as retaining walls, free-standing walls, planters, stairs, impressive entrance monuments, parapets and much more…

The multi-sized and multi-faceted concrete units are rugged, yet blended with colours and character, and appear as randomly-sized natural stone that has been weathered over time, enables a seamless blending with the surroundings, for patios, plazas, privacy walls, terraces, courtyards or water features.

In addition to providing strength and beauty, Keystone Country Manor® can help create signature hardscape designs, setting your project apart from all others.

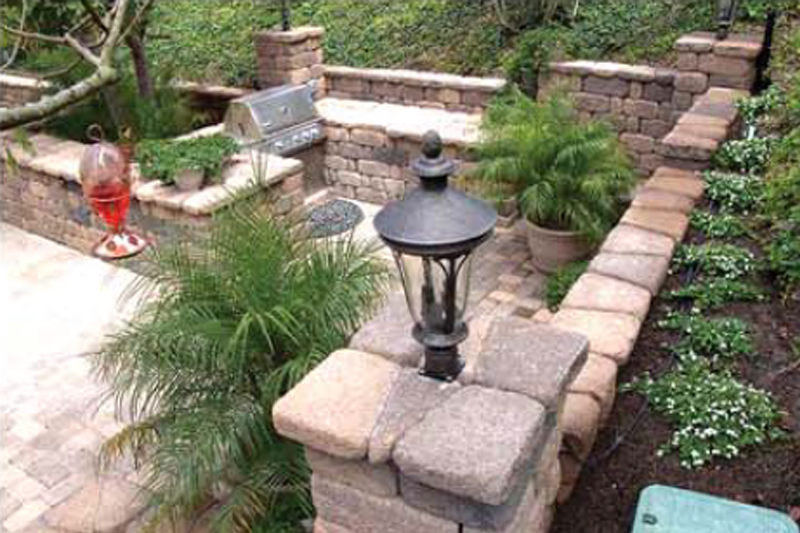

The ability to create free-standing walls allows for the creation of barbeques and outdoor kitchens, bench seating and the concealment of outdoor lighting and speaker systems.

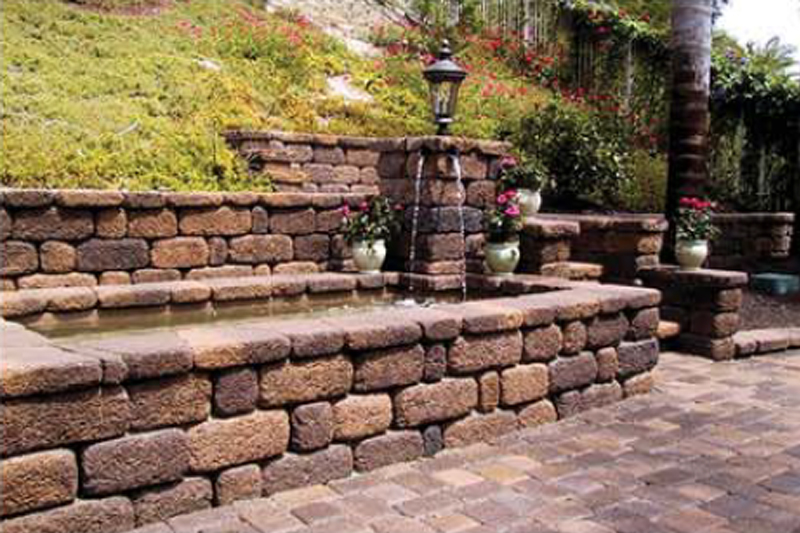

Use Keystone Country Manor® to provide detail and accent to a large lawn or green space, add grandeur to a driveway or footpath, or, create a truly unique pool/patio area.

Product reference standards: MS 27 : 1996, BS 6073 : 1981, ASTM C 1372-97, ASTM C 90-75, ASTM C 140-75
Additional information, products and services available on request

Design and Construction Manual
KeyWall Engineering Design Software
KeyWall Software Design Manual and Operating Guide
KEYSTONE COUNTRY MANOR® Specifications
Geogrid Specifications
Segmental Retaining Wall (SRW) Specification
Method Statement
Preliminary Design Assistance

Attributes

KEYSTONE COUNTRY MANOR® modular units are dry-cast from high-strength low absorption concrete by sophisticated and dedicated process equipment for durable long-lasting products and structures.

The dry-stacked and mechanically interconnected modular wall evokes the old world charm of a stonemason-crafted wall.

Key Features

Three Or More Face Dimension

Provides the greatest degree of random layout due to variations from unit side dimensions
Each unit has two different side dimensions.
All units have two different side lengths to provide a random width appearance to the wall.

Colour

Keystone Country Manor® is produced in colour blends that enhance the natural stone-like appearance.

Three Textured Sides on each unit

Weathered or antiqued finish to provide a more "natural stone" look to the units.
Allows each unitj to be used in multiple positions within the wall.
Each unit can be used as an exposed end unit or a 90° corner unit.
Allows construction of small free-standing walls, parapet walls, pilasters and columns in addition to retaining walls.

Shape

Each unit has a 90° angle and a tapered (angled) side, allowing the units to be used in 90° corners, tight fitting straight line walls, and radii at curves.

Units are Packaged in Sets

Eliminates the need for the contractor to pull from multiple pallets to maintain random appearance.
Provides for a simple method of construction and a random appearance to the wall system.

SUPPLIED IN SETS OF:

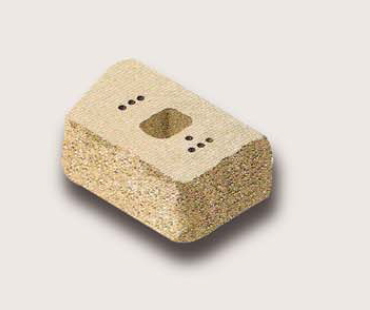

LARGE UNIT - 2 units

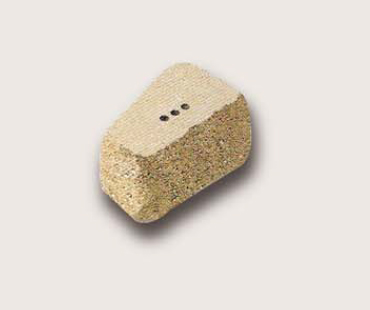

SMALL UNIT - 1 unit

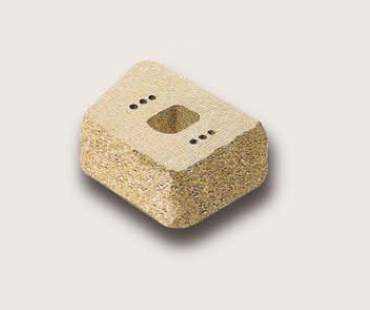

MEDIUM UNIT - 1 unit

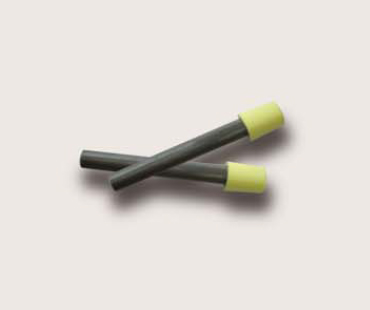

FIBERGLASS PINS - 7 units

High Strength Pins with Shouldered Cap

Multiple pin positions allow for near vertical, 9.5° batter (setback), and the opportunity to randomly pull a unit forward to accent the wall.

Size (H x W x D)	6”h x 10”d x 16”/14”w (150mm x 250mm x 400mm/350mm)
Unit Weight	±60 lbs. (27 kg)

Size (H x W x D)	6”h x 10”d x 12”/10”w (150mm x 250mm x 300mm/250mm)
Unit Weight	±40 lbs. (18 kg)

Size (H x W x D)	6”h x 10”d x 6”/4”w (150mm x 250mm x 150mm/100mm)
Unit Weight	±25 lbs. (11 kg)

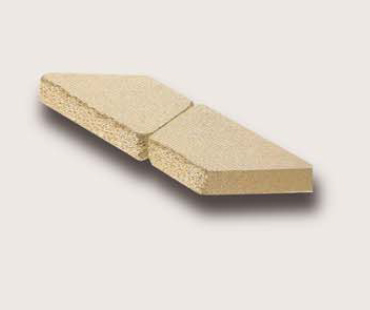

Size (H x W x D)	3”h x 12”d x 14”/8”w (75mm x 300mm x 350mm/200mm)
Unit Weight	±30 lbs. (14 kg)
